Full Catalog
PRODUCT SPECIFICATIONS
Complete technical specifications for all Y&W Machinery equipment. Every machine factory-tested and quality-certified before delivery.
6 Models Available
BLOCK MACHINES
YW 4-35A Block Machine
Dimension
1230 × 1300 × 1450 mm
Power
6.0 Kw
Frequency
50 Hz
Weight
680 kg

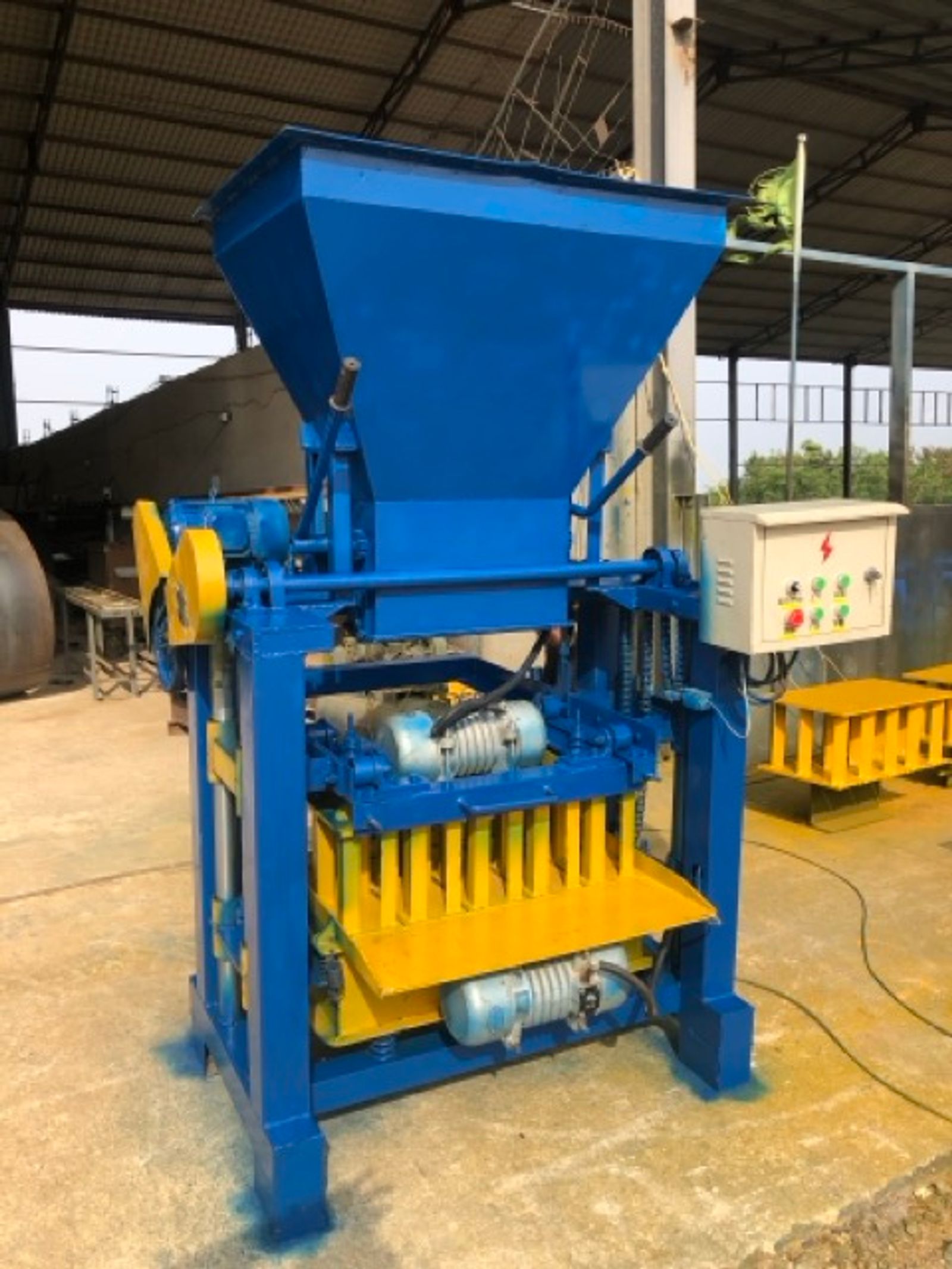

YW 4-35B Block Machine
Dimension
1230 × 1300 × 1450 mm
Power
7.5 Kw
Frequency
50 Hz
Weight
750 kg

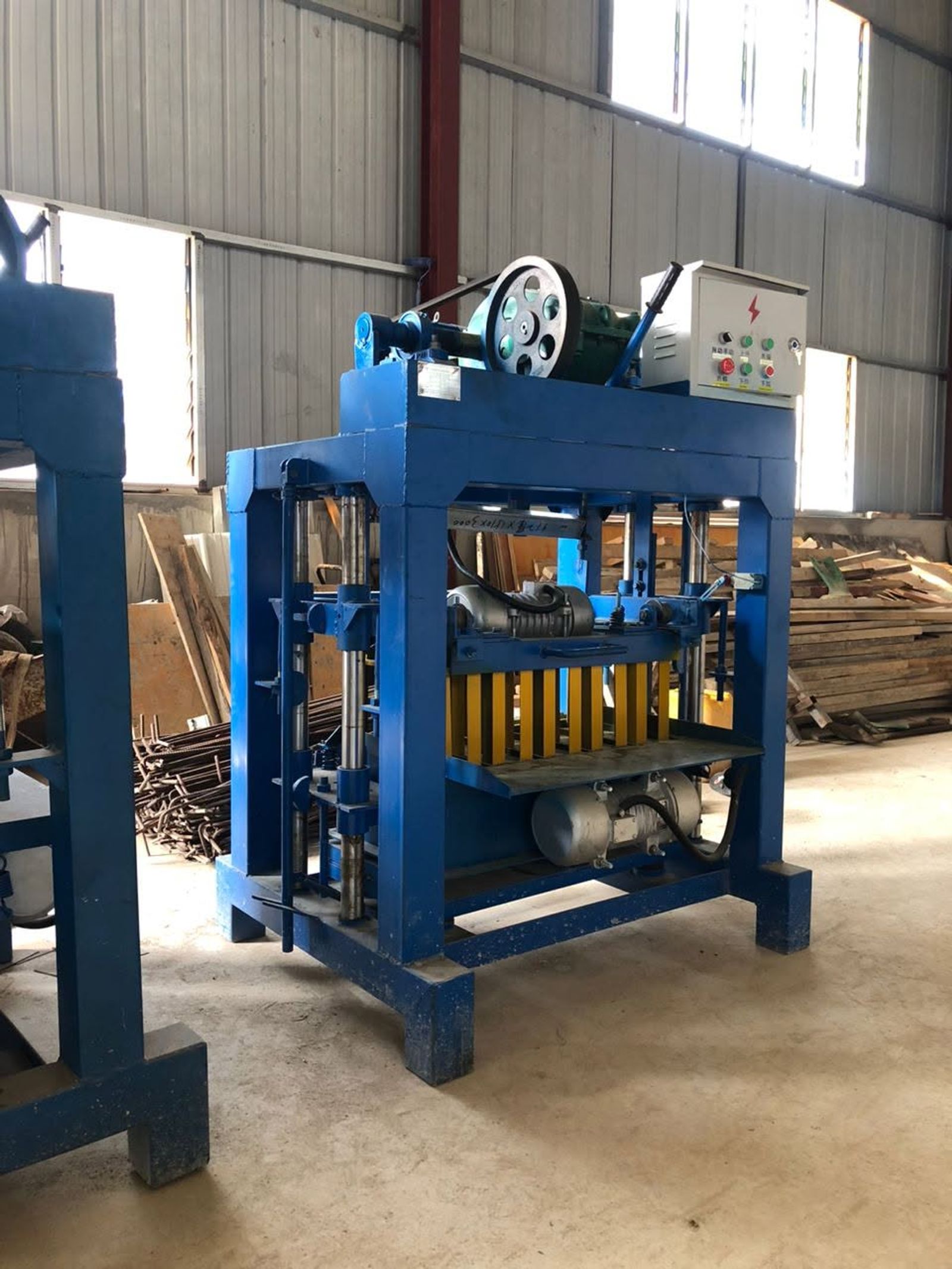

YW 4-40X Block Machine
Dimension
1500 × 1300 × 1800 mm
Power
6.5 Kw
Frequency
50 Hz
Weight
800 kg
YW 4-40A Block Machine
Dimension
1750 × 1680 × 2500 mm
Power
8.0 Kw
Frequency
50 Hz
Weight
1,400 kg
YW 4-40B Block Machine
Dimension
1520 × 1350 × 2100 mm
Power
7.5 Kw
Frequency
50 Hz
Weight
1,400 kg
YW 3-30 Block Machine
Dimension
1450 × 1250 × 1580 mm
Power
4.4 Kw
Frequency
50 Hz
Weight
380 kg
Custom Available
BLOCK MOLDS
Standard Block Molds
8 inches
400 × 200 × 200 mm — 4 blocks/mold
6 inches
400 × 150 × 200 mm — 5 blocks/mold
5 inches
400 × 125 × 200 mm — 6 blocks/mold
4 inches
400 × 100 × 200 mm — 7 blocks/mold
Pallet Size
850 × 550 × 20 mm
Custom Molds
Available on pre-order
Paving Blocks
21+ designs, 250 × 250 × 60 mm
Special customizing of molds can be made on pre-order to suit customer preference. 21+ hollow block designs and 14+ paving block designs available.
8 Models — JW Series
PAN MIXERS
JW-350A
Pan Size
900 × 400 mm
Capacity
0.25 m³
Weight
150 kg
Motor Power
4.0 Kw / 380V
JW-400A
Pan Size
1100 × 400 mm
Capacity
0.38 m³
Weight
230 kg
Motor Power
5.5 Kw / 380V
JW-500A
Pan Size
1300 × 500 mm
Capacity
0.5 m³
Weight
480 kg
Motor Power
7.5 Kw / 380V
JW-750A
Pan Size
1500 × 500 mm
Capacity
0.75 m³
Weight
540 kg
Motor Power
11 Kw / 380V

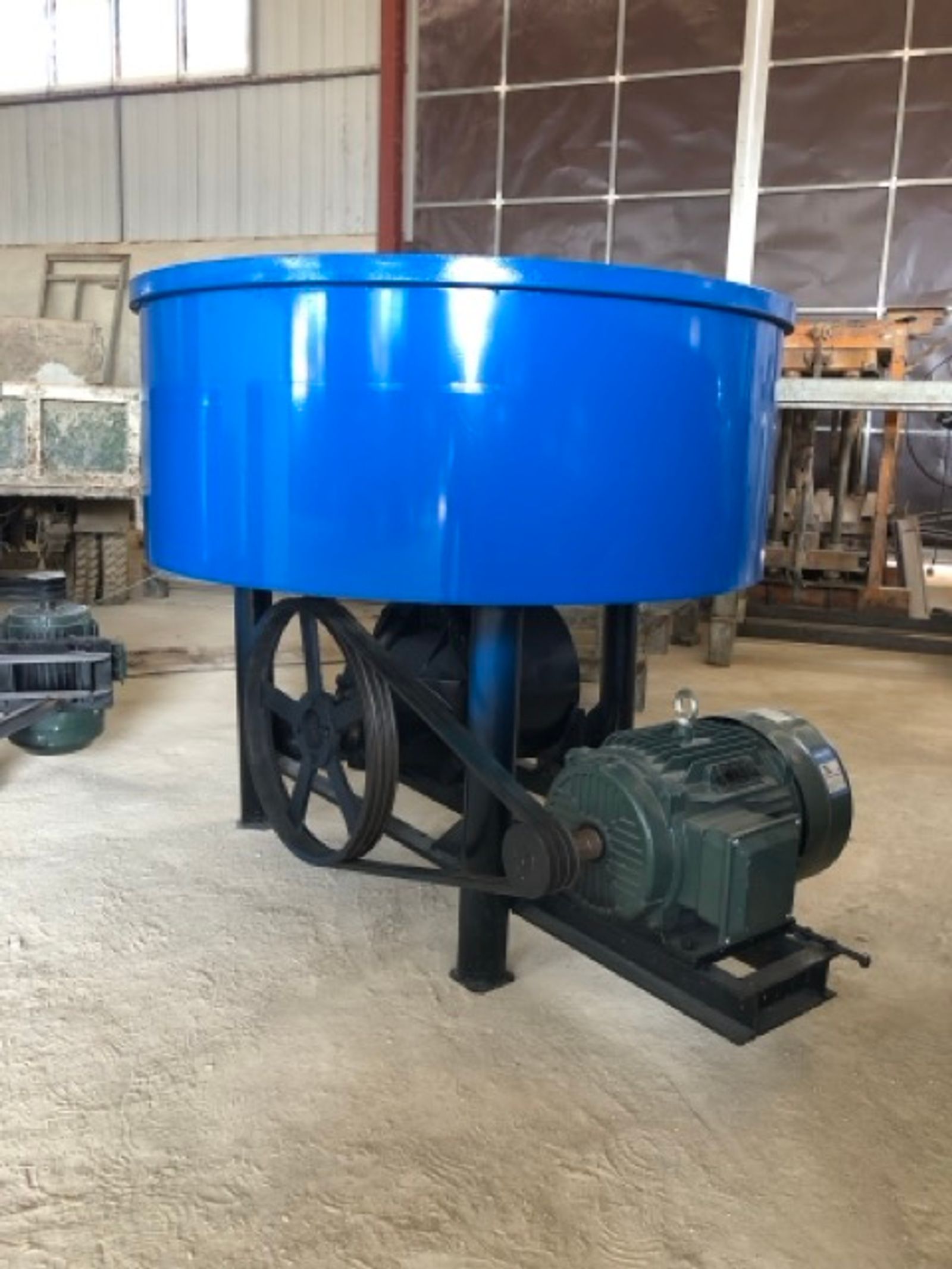

JW-750B
Pan Size
1500 × 500 mm
Capacity
0.75 m³
Weight
550 kg
Motor Power
11 Kw / 380V

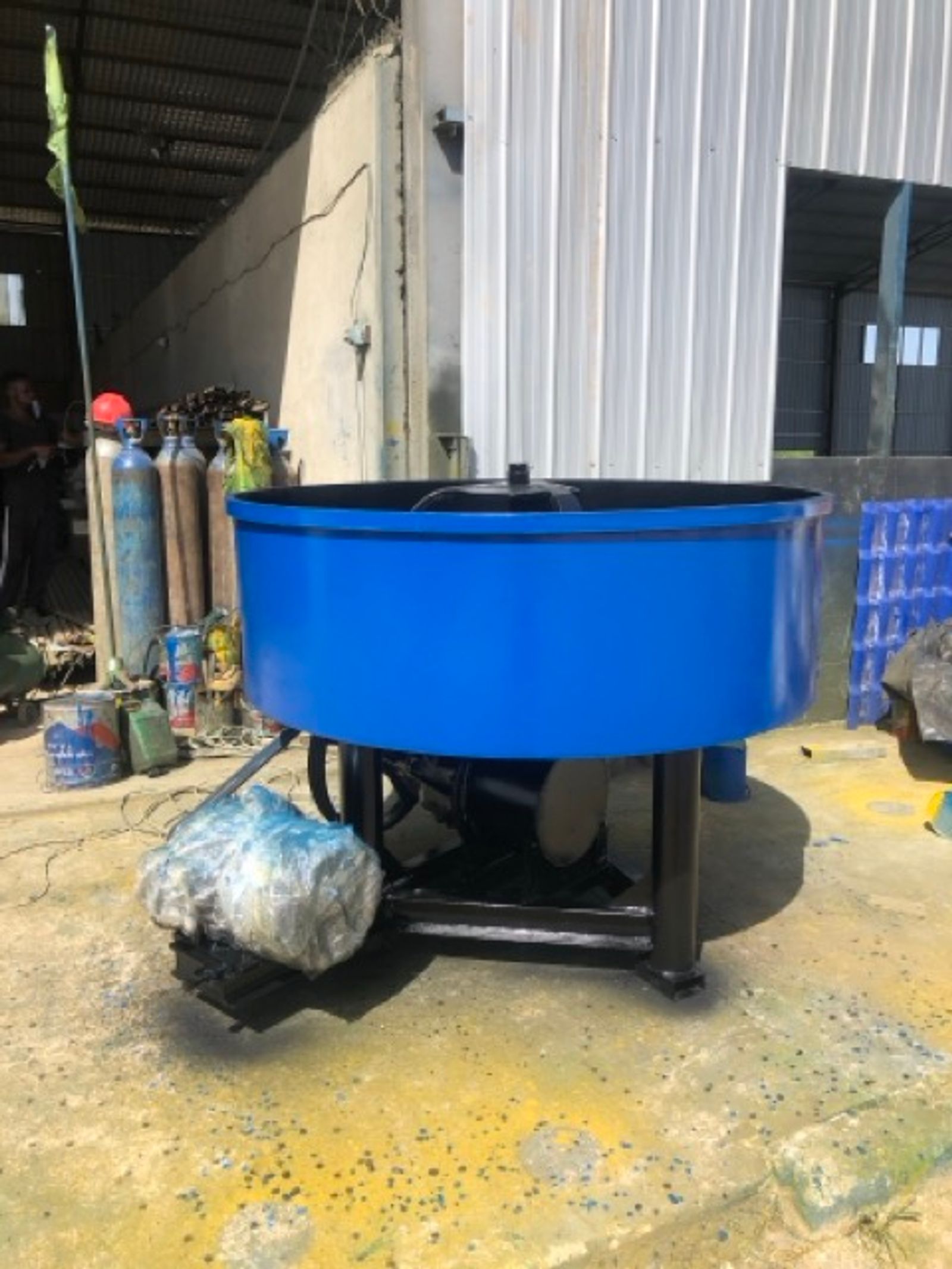

JW-1000A
Pan Size
1800 × 500 mm
Capacity
1 m³
Weight
680 kg
Motor Power
15 Kw / 380V
JW-1000B
Pan Size
1800 × 500 mm
Capacity
1 m³
Weight
680 kg
Motor Power
15 Kw / 380V
JW-1500A
Pan Size
2000 × 500 mm
Capacity
1.5 m³
Weight
750 kg
Motor Power
18.5 Kw / 380V
JZC Series — 5 Models
DRUM MIXERS
JZC-350 Semi-Automatic
Product Size
2800 × 1850 × 2700 mm
Feed Capacity
420 L
Discharge Capacity
350 L
Production Capacity
10–14 m³/h
JZC-350 Automatic
Product Size
2800 × 1850 × 2700 mm
Feed Capacity
420 L
Discharge Capacity
350 L
Production Capacity
10–14 m³/h
JZC-400 Semi-Automatic
Product Size
2800 × 1850 × 2700 mm
Feed Capacity
500 L
Discharge Capacity
400 L
Production Capacity
15–20 m³/h
JZC-400 Automatic
Product Size
3180 × 1850 × 3050 mm
Feed Capacity
500 L
Discharge Capacity
400 L
Production Capacity
15–20 m³/h
JZC-500 Automatic
Product Size
2850 × 2700 × 5246 mm
Feed Capacity
800 L
Discharge Capacity
500 L
Production Capacity
20–25 m³/h
Belt Conveyor Systems
CONVEYORS
500 × 5000 Conveyor
Lifting Height
1800–2600 mm
Machine Power
1.1 Kw
Running Speed
6 m/s
Carrying Capacity
100 kg
500 × 6000 Conveyor
Lifting Height
2000–3200 mm
Machine Power
1.5 Kw
Running Speed
6 m/s
Carrying Capacity
120 kg
Accessories
PALLETS & TROLLEYS
High-strength composite pallets and heavy-duty block trolleys. 1-year warranty. Custom sizes available.

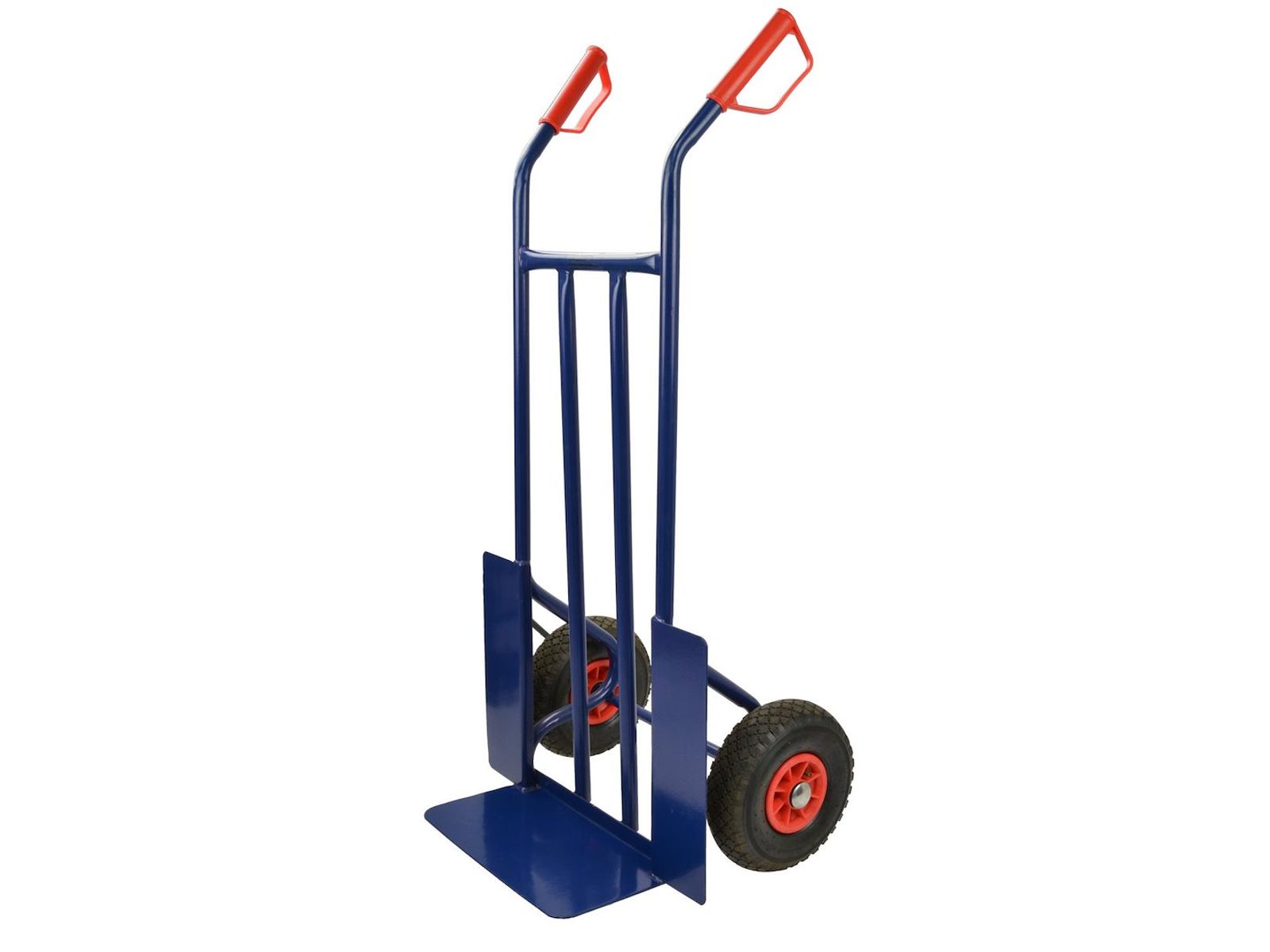

YW-200 Block Trolley
Loading capacity(Kg)
220
Tyre size
400 x 90
Shaft diameter(mm)
⌀ 12
Wheelbase(mm)
970
Model 880 Block Pallet
Dimensions(mm)
880 x 880 x 25
Pallet Weight(Kg)
24.69
Material
Composite materials (PVC + other materials)
Carring capacity(Kg)
400
Model 850 Block Pallet
Dimensions(mm)
850 x 550 x 20
Pallet Weight(Kg)
11.50
Material
Composite materials (PVC + other materials)
Carring capacity(Kg)
200
Model 880 Block Pallet
Dimensions(mm)
910 x 910 x 25
Pallet Weight(Kg)
26.40
Material
Composite materials (PVC + other materials)
Carring capacity(Kg)
450
YW-400 Block Trolley
Loading capacity(Kg)
400
Tyre size
400 x 90
Shaft diameter(mm)
⌀ 12
Wheelbase(mm)
1120
